Rubber Ring Fiber Optic Splice Closure Joint Box For Aerial-Hanger
, Small Volume

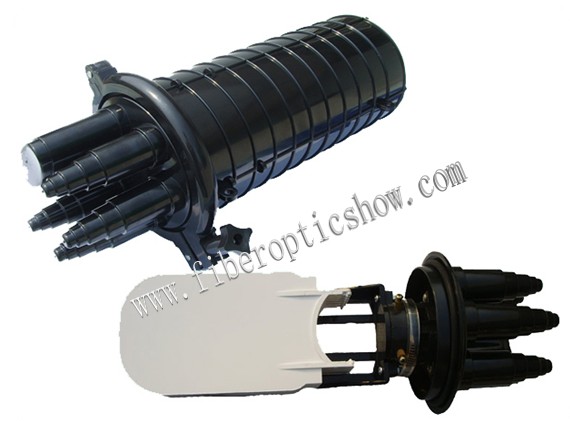

FOCC this kind of Fiber Optic Splice Closure allows Four cables in
and Four cables out. It accommodates the splicing and branching of
the cable which is used in aerial-hanger, wall-mounting or direct
buried. The Closure is an openable box which is made from
high-quality PC. The closure and the foundation plate are sealed
with Silicon Gum Material which fixes tightly by hoop. And the
sealing of cables also uses Silicon Gum Material. The Closure can
be opened and used again, no need to change the sealing materials
after it be sealed.
Specification
Part No. | Dimension (mm) | Diameter of cable | Max capacity (F) | Tray Capacity | Weight (kg) | Material | Packing |
08-6 | Ф140*410 (mm)
| 8-22mm | 96 Fibers | 12 Or 24 Cores | 2.5 | PC | 6 Pcs Per Outer Box Packed |
Features
Small volume, big capacity, valid and durable;
The product has reliable equipment to fix the cable, and
earth-fault protection;
Modularity and loose-leaf fiber-collection tray;
Take in radius of the light fiber, ≥40mm;
Every fiber-collection tray can neatly overturn, and operate
easily;
Adopt high quality mechanical self-locking equipment of joint ring
to airproof the joint box;
All the heat-shrinkable material is imported. The connection box
can be opened without special tools, and can be opened repeatedly;
Convenient and quick operation, good air tightness;
Connect the buried and overhead optical fiber cable lines.
Applications
Aerial-hanger, Wall-mounting, Direct Buried.
