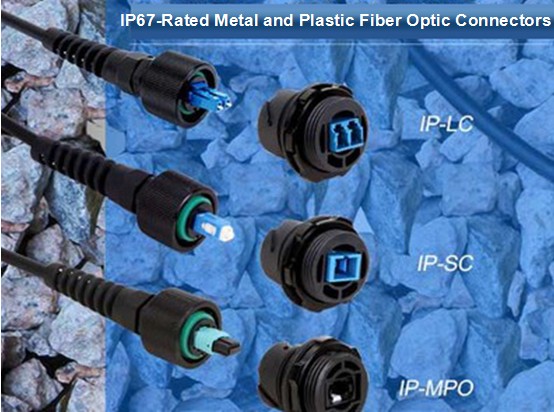

Waterproof IP67 Rating Metal And Plastic Fiber Optic LC Connectors
Types
The water-resistant LC Series connectors provide increased
protection from contamination and moisture in addition to
mechanical stability, temperature resistance and vibration
immunity. The connectors use OFNR (optical fiber nonconductive
riser) breakout cables rated for outdoor usage and / or direct
burial. The IP67 - rated LC Series connectors feature a 1 / 6th
turn bayonet coupling for a fast and secure mate / unmate, even
with gloved hands. The compact LC Series connectors are also
compatible with industry standard cables and interconnect products.
Features
Cost effective solution for in house termination;
IP68 Water immersion and Dust protection for hash environment;
Wide range of operational temperature for outside plant - 40℃ To
＋70℃
Wide range of cables to be used,5 - 8mm OD cable with two 2.0mm to
3.0mm jacketed subunits;
Chemical Resistance;
Intermatable to other industrial LC adaptor per IEC 61076 - 106;
Simple assembly requiring no special tools;
Durable mechanical mating, minimum of 500 matings.
Applications
Widely used in FTTA & FTTH;
Standard interface specified in 3G, 4G;
Harsh outdoor environments application.
Specifications
Optical Characteristics | Singlemode | Multimode |
For IP - LC Connector | Typical | Typical |
Insertion Loss | < 0.1dB | < 0.2dB |
Return Loss | ≥ 55dB | Typical For (PC) |
Durability | < 0.2dB Typical change 500 matings |
Operating Temperature | -40℃ To ＋70℃ |
Female Hole Size | 125.5um +1/-0 Concentricity:≦1um 127um |
Shipping Via Those Follow Tools
Waterproof Fiber Optic Connector Quality
