Gigabit Ethernet Simplex LC UPC Fiber Optic Patch Cord Connector
Types

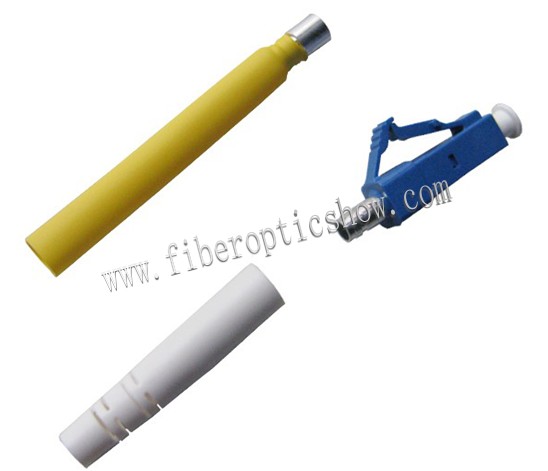

The LC short for the name Lucent Connector; the name suggests its
designer. LC fiber optic connector is a small form factor connector
that uses a 1.25 mm ferrule, half the size of the SC fiber optic
connector. This can increase the density of fiber optic connector
in fiber optic patch panels. The LC connector family includes
single mode LC UPC connector, single mode LC APC connector and
multimode LC UPC connector. There are simplex LC connectors and
duplex types. The LC connector has been standardized as FOCIS 10
(Fiber Optic Connector Intermateability Standards) in
EIA/TIA-604-10. Ingellen supply various kinds of LC fiber optic
connectors, adapters, attenuators and cable assemblies. These
products are compliant to TIA /EIA and IEC standard. They are
suitable to use in Gigabit Ethernet, multimedia, industrial and
military applications.
FOCC offering various kinds of LC fiber optic connectors, adapters,
attenuators and cable assemblies. These products are compliant to
TIA /EIA and IEC standard. They are suitable to use in Gigabit
Ethernet, multimedia, industrial and military applications.
LC Connector Specifications
Item | Singlemode | Multimode |
Insertion Loss | PC < 0.3dB APC < 0.2dB | PC < 0.3dB |
Return Loss | PC > 45dB APC > 60dB | PC > 25dB |
Insert-pull Test | 1000 times < 0.3dB |
|
Operating Temperature | - 40°C ~ + 75°C |
|
Ceramic Ferrule Spec | 125.5um concentricity : < 1um | 127um concentricity :< 3um |
Polish Type | PC/ APC (9 / 125um) | PC (50 / 125um,62.5 / 125um) |
LC Connector Applications
LAN & WAN;
CATV fiber optic links;
Network;
Broadband;
Telecommunications.
LC Connector Features
Minimum insertion loss cost;
Corrosion resistant body;
Inner key and key ring styles available;
Variety of boot types and colors;
Precision mechanical dimension;
Meets Telecordia-GR-326-CORE specifications;
Ultra low back reflection;
Reliability and optical performance.
Ordering Guide
P / N | Connector Type | Fiber Mode | Fiber Type |
FOCC-011 | LC / APC | Singlemode Multimode | Simplex |
LC / PC |
Shipping Via Those Follow Tools
FOCC Optic Fiber Connector Quality
Notes:
Prices and specifications are subject to change without notice.
FOCC is not responsible for typographical or photographic errors.
Please contact us at focc@fiberfocc.com for detailed inquiry.
