Multiport FBT Network Fiber Optic Splitter Types , Passive Optical
Signal Splitter
This kind one of part components for GPON FTTx networks, optical
splitters can be placed in the Central Office or in one of the
distribution points (outdoor or indoor) because the FBT splitters
are highly stable for multiport optical signal splitting with low
insertion loss. FBT couplers are designed for power splitting and
tapping in telecommunication equipment, CATV network, and test
equipment. FOCC Fused Biconic Tapered (FBT) splitters are available
with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20 and
1x24,2x2, 2x4, 3x3 configurations with single mode or multimode
fiber and we offer all type connectors of pre-connectorized like
SC, FC, ST, LC and E2000 etc. The 2x2 FBT Singlemode Dual Window
900um Loose Tube Fiber Splitter can splitter the optical signals
into 2 parts, and the coupling ratio can be customized.

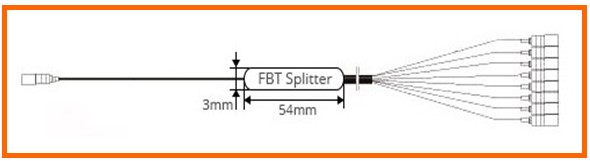

Drawing Profile
FBT Applications
FTTX (FTTP, FTTH, FTTN, FTTC);
Passive Optical Networks (PON);
Local Area Networks (LAN);
CATV Systems;
Amplifying, Monitoring System;
Test Equipments.
FBT Features
Low insertion loss;
Low polarization dependent loss;
High Return Loss;
Optional Split Ratio 20/80, 40/60...(50/50 as default.);
Compact for small application areas like in closure or splice
trays;
Wide Operating Temperature and Wavelength;
Excellent Environmental & Mechanical Stability;
Qualified Under Telcordia GR-1221 and GR-1209;
Steel tube-compact size.
Grade | 1x2(2x2) MMC | 1X3 MMC | 3X3 MMC | 1X4 MMC |
P | A | P | A | P | A | P | A |
Operating wavelength(nm) | 850 or 1310, others upon customized request |
Operating bandwidth (nm) | ±40 |
Typical excess loss (dB) | 0.4 | 0.7 | 0.7 | 1 | 1 | 1.3 | 0.9 | 1.2 |
Insertion Loss(dB) | 50/50 | ≤3.7/3.7 | ≤4.0/4.0 | ≤6.0 | ≤6.3 | ≤6.3 | ≤6.6 | ≤7.8 | ≤8.3 |
40/60 | ≤4.7/2.7 | ≤5.0/3.0 |
|
|
|
|
|
|
30/70 | ≤6.0/2.1 | ≤6.3/2.4 |
|
|
|
|
|
|
20/80 | ≤7.8/1.4 | ≤8.1/1.7 |
|
|
|
|
|
|
10/90 | ≤11.2/0.9 | ≤11.6/1.2 |
|
|
|
|
|
|
5/138 | ≤14.5/0.7 | ≤15.0/1.0 |
|
|
|
|
|
|
2/98 | ≤18.6/0.6 | ≤19.4/0.9 |
|
|
|
|
|
|
1/99 | ≤22.0/0.5 | ≤22.8/0.8 |
|
|
|
|
|
|
Uniformity (50/50)(dB) | ≤0.5 | ≤0.8 | ≤0.6 | ≤0.9 | ≤1.2 | ≤1.6 | ≤1.2 | ≤1.5 |
Directivity(dB) | ≥40 |
Operating temperature(℃) | -40 ~ +85 |
Fiber type (um) | 50/125 or 62.5/125 Multi-Mode or customized request |
Dimensions(Ф×L) (mm) | 250um bare fiber | Ф3.0×45 | Ф3.0×54 |
900um loose tube | Ф3.0×54 | Ф4.0×70 |
0.9/2.0/3.0mm loose tube | 90×20×10 | N / A |
Shipping By Those Follow Tools Or Customized Demand
FOCC Fiber Optic Splitter Quality
