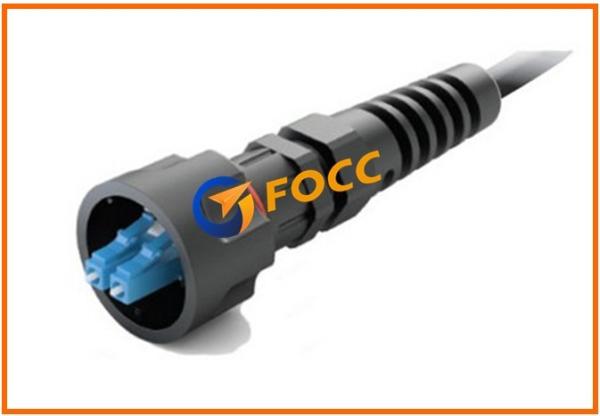

Heavy Duty Strain Relief LC Fiber Optic Connector Of Industrial
Plug Housing
This kind of Industrial LC Plug provides a robust fiber connection
in virtually any harsh environment. The plug comes with two
Singlemode LC fiber connectors, industrial plug housing,
specialized fiber bend relief boot and heavy duty strain relief
crimp components. In addition to providing robust IP66/IP67
protection, cable to plug strain relief has been dramatically
improved over standard fiber jumpers. Typical strain relief is well
over 250 Newton's (56 lbs), which is over 50% better than standard
LC jumpers. This added protection ensures that cable assemblies
will survive incidental contact during the course of normal use.
Optical Characteristics | Singlemode | Multimode |
For IP - LC Connector | Typical | Typical |
Insertion Loss | < 0.1dB | < 0.2dB |
Return Loss | ≥ 55dB | Typical For (PC) |
Durability | < 0.2dB Typical change 500 matings |
Operating Temperature | -40℃ To ＋70℃ |
Female Hole Size | 125.5um +1/-0 Concentricity:≦1um 127um |
Features
Cost effective solution for in house termination;
IP68 Water immersion and Dust protection for hash environment;
Wide range of operational temperature for outside plant - 40℃ To
＋70℃
Wide range of cables to be used,5 - 8mm OD cable with two 2.0mm to
3.0mm jacketed subunits;
Chemical Resistance;
Intermatable to other industrial LC adaptor per IEC 61076 - 106;
Simple assembly requiring no special tools;
Durable mechanical mating, minimum of 500 matings.
Applications
Widely used in FTTA & FTTH;
Standard interface specified in 3G, 4G;
Harsh outdoor environments application.
